Technical Specifications << Go Back
2017 Ford Super Duty F-550 DRW 4WD SuperCab 168" WB 60" CA Lariat |
|
|
|
Manufacturer Code:X5H
4WD Light Duty Chassis Cab Trucks |
||
|
||
2017 Ford Super Duty F-550 DRW 4WD SuperCab 168" WB 60" CA Lariat |
||
|

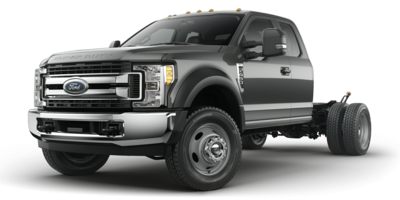

Sample Image
|
||
|
Manufacturer Code:X5H
4WD Light Duty Chassis Cab Trucks |
||
|
Manufacturer warranty Basic: 3 Years/60,000 km Drivetrain: 5 Years/100,000 km Corrosion: 5 Years/Unlimited km Roadside Assistance: 5 Years/100,000 km |
||
|
Fuel economy |
||
Emissions
G/km Of CO2 Emissions
N/A
Weight Information
Gross Axle Wt Rating - Rear (lbs)
13660
Curb Weight - Front (lbs)
4731
Mileage
EnerGuide Estimate - Hwy (L/100 km)
N/A
Cruising Range - City (mi)
N/A
Trailering
Dead Weight Hitch - Max Tongue Wt. (lbs)
500
Wt Distributing Hitch - Max Trailer Wt. (lbs)
18500
Engine
Engine Type
Intercooled Turbo Diesel V-8
Displacement
6.7 L/406
Transmission
Trans Type
6
Trans Description Cont.
Automatic w/OD
Electrical
Cold Cranking Amps @ 0° F (2nd)
750
Maximum Alternator Capacity (amps)
377
Frame
Sect Modulus Rails Only (in³)
N/A
Frame RBM (N/A)
N/A
Suspension
Suspension Type - Rear
Leaf
Spring Capacity - Front (lbs)
6000
Tires
Rear Tire Order Code
TFB
Spare Tire Order Code
N/A
Wheels
Rear Wheel Size (in)
19.5 X 6
Spare Wheel Size (in)
N/A
Steering
Steering Ratio (:1), On Centre
N/A
Steering Ratio (:1), At Lock
N/A
Brakes
Brake ABS System
4-Wheel
Brake ABS System (Second Line)
4-Wheel
Fuel Tank
Aux Fuel Tank Capacity, Approx (gal)
N/A
Fuel Tank Location
N/A
Interior Dimensions
Front Leg Room (in)
43.9
Front Shoulder Room (in)
66.7
Exterior Dimensions
Length, Overall w/o rear bumper (in)
N/A
Length, Overall (in)
253.3
Cargo Area Dimensions
Cargo Box Width @ Floor (in)
N/A
Cargo Box Width @ Wheelhousings (in)
N/A
Traction Battery
Gross Traction Battery Capacity (kWh)
N/A
Weight Information
Curb Weight (lbs)
8035.00
Reserve Axle Capacity (lbs)
11583.00
