Technical Specifications << Go Back
2018 Ford Transit Van T-250 148" Hi Rf 9000 GVWR Sliding RH Dr |
|
|
|
Manufacturer Code:R2X
Cargo Vans |
||
|
||
2018 Ford Transit Van T-250 148" Hi Rf 9000 GVWR Sliding RH Dr |
||
|

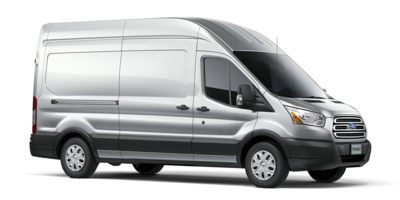

Sample Image
|
||
|
Manufacturer Code:R2X
Cargo Vans |
||
|
Manufacturer warranty Basic: 3 Years/60,000 km Drivetrain: 5 Years/100,000 km Corrosion: 5 Years/Unlimited km Roadside Assistance: 5 Years/100,000 km |
||
|
Fuel economy |
||
Emissions
G/km Of CO2 Emissions
N/A
Weight Information
Gross Axle Wt Rating - Rear (lbs)
5515
Curb Weight - Front (lbs)
2965
Mileage
EnerGuide Estimate - Hwy (L/100 km)
N/A
Cruising Range - City (mi)
N/A
Trailering
Dead Weight Hitch - Max Tongue Wt. (lbs)
500
Wt Distributing Hitch - Max Trailer Wt. (lbs)
6300
Engine
Engine Type
Regular Unleaded V-6
Displacement
3.7 L/228
Transmission
Trans Type
6
Trans Description Cont.
Automatic w/OD
Electrical
Cold Cranking Amps @ 0° F (2nd)
N/A
Maximum Alternator Capacity (amps)
150
Frame
Sect Modulus Rails Only (in³)
N/A
Frame RBM (N/A)
N/A
Suspension
Suspension Type - Rear
Leaf
Spring Capacity - Front (lbs)
4130
Tires
Rear Tire Order Code
N/A
Spare Tire Order Code
N/A
Wheels
Rear Wheel Size (in)
16 X 7
Spare Wheel Size (in)
Full-Size
Steering
Steering Ratio (:1), On Centre
N/A
Steering Ratio (:1), At Lock
N/A
Brakes
Brake ABS System
4-Wheel
Brake ABS System (Second Line)
4-Wheel
Fuel Tank
Aux Fuel Tank Capacity, Approx (gal)
N/A
Fuel Tank Location
N/A
Interior Dimensions
Front Leg Room (in)
39.7
Front Shoulder Room (in)
67.9
Exterior Dimensions
Length, Overall w/rear bumper (in)
N/A
Length, Overall (in)
237.6
Exterior Dimensions
Rear Door Opening Width (in)
N/A
Exterior Dimensions
Side Door Opening Width (in)
N/A
Step Up Height - Front (in)
N/A
Cargo Area Dimensions
Cargo Area Length @ Floor to Seat 1 (in)
143.7
Cargo Box Width @ Top, Rear (in)
N/A
Traction Battery
Gross Traction Battery Capacity (kWh)
N/A
Weight Information
Curb Weight (lbs)
5226.00
Reserve Axle Capacity (lbs)
4419.00
