Technical Specifications << Go Back
2024 Ford Ranger Raptor 4WD SuperCrew 5' Box |
|
|
|
Manufacturer Code:R4L
4WD Standard Pickup Trucks |
||
|
||
|
Fuel economy EnerGuide Estimate - City (L/100 km):14.9 EnerGuide Estimate - Hwy (L/100 km):12.8 |
||
2024 Ford Ranger Raptor 4WD SuperCrew 5' Box |
||
|

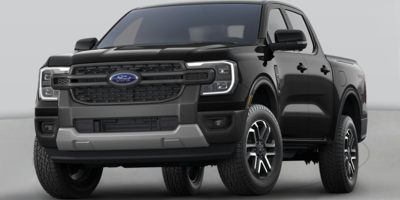

Sample Image
|
||
|
Manufacturer Code:R4L
4WD Standard Pickup Trucks |
||
|
Manufacturer warranty Basic: 3 Years/60,000 km Drivetrain: 5 Years/100,000 km Corrosion: 5 Years/Unlimited km Roadside Assistance: 5 Years/100,000 km |
||
|
Fuel economy EnerGuide Estimate - City (L/100 km):14.9 EnerGuide Estimate - City (L/100 km):14.9EnerGuide Estimate - Hwy (L/100 km):12.8 EnerGuide Estimate - Hwy (L/100 km):12.8 |
||
Emissions
G/km Of CO2 Emissions
326
Weight Information
Gross Axle Wt Rating - Rear (lbs)
3370
Curb Weight - Front (lbs)
2554
Mileage
EnerGuide Estimate - Hwy (L/100 km)
12.8
Cruising Range - City (mi)
283.37
Trailering
Dead Weight Hitch - Max Tongue Wt. (lbs)
500
Wt Distributing Hitch - Max Trailer Wt. (lbs)
5512
Engine
Engine Type
Twin Turbo Premium Unleaded V-6
Displacement
3.0 L/180
Transmission
Trans Type
10
Trans Description Cont.
Automatic w/OD
Electrical
Cold Cranking Amps @ 0° F (2nd)
N/A
Maximum Alternator Capacity (amps)
N/A
Frame
Sect Modulus Rails Only (in³)
N/A
Frame RBM (N/A)
N/A
Suspension
Suspension Type - Rear
Trailing Arm
Spring Capacity - Front (lbs)
N/A
Tires
Rear Tire Order Code
N/A
Spare Tire Order Code
N/A
Wheels
Rear Wheel Size (in)
17 X 8.5
Spare Wheel Size (in)
Full-Size
Steering
Steering Ratio (:1), On Centre
N/A
Steering Ratio (:1), At Lock
N/A
Brakes
Brake ABS System
4-Wheel
Brake ABS System (Second Line)
4-Wheel
Fuel Tank
Aux Fuel Tank Capacity, Approx (gal)
N/A
Fuel Tank Location
N/A
Interior Dimensions
Front Leg Room (in)
43.7
Front Shoulder Room (in)
57.1
Exterior Dimensions
Length, Overall w/o rear bumper (in)
N/A
Length, Overall (in)
210.9
Cargo Area Dimensions
Cargo Box Width @ Top, Rear (in)
62.4
Cargo Box Width @ Floor (in)
62.4
Transmission
Eighth Gear Ratio (:1)
0.85
Ninth Gear Ratio (:1)
N/A
Traction Battery
Gross Traction Battery Capacity (kWh)
N/A
Weight Information
Curb Weight (lbs)
4441.00
Reserve Axle Capacity (lbs)
2059.00
