Technical Specifications << Go Back
2026 Hyundai Santa Fe Hybrid Ultimate Calligraphy AWD |
|
|
|
Manufacturer Code:SAHW6G1AULBG
4WD Sport Utility Vehicles |
||
|
Fuel economy EnerGuide Estimate - City (L/100 km):6.9 EnerGuide Estimate - Hwy (L/100 km):7 |
||
2026 Hyundai Santa Fe Hybrid Ultimate Calligraphy AWD |
||
|

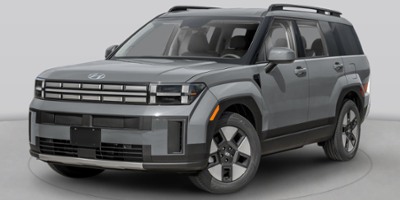

Sample Image
|
||
|
Manufacturer Code:SAHW6G1AULBG
4WD Sport Utility Vehicles |
||
|
Fuel economy EnerGuide Estimate - City (L/100 km):6.9 EnerGuide Estimate - City (L/100 km):6.9EnerGuide Estimate - Hwy (L/100 km):7 EnerGuide Estimate - Hwy (L/100 km):7 |
||
Emissions
G/km Of CO2 Emissions
163
Interior Dimensions
Passenger Volume (ft³)
151
Weight Information
Curb Weight - Front (lbs)
N/A
Curb Weight - Rear (lbs)
N/A
Mileage
EnerGuide Estimate - Hwy (L/100 km)
7
Cruising Range - City (mi)
603.05
Trailering
Dead Weight Hitch - Max Tongue Wt. (lbs)
200
Wt Distributing Hitch - Max Trailer Wt. (lbs)
2000
Engine
Engine Type
Intercooled Turbo Gas/Electric I-4
Displacement
1.6 L/98
Transmission
Trans Type
6
Trans Description Cont.
Automatic w/OD
Electrical
Maximum Alternator Capacity (amps)
N/A
Suspension
Suspension Type - Rear
Multi-Link
Suspension Type - Front (Cont.)
Strut
Mileage
EnerGuide Estimate Equivalent - City
N/A
Suspension
Shock Absorber Diameter - Rear (mm)
N/A
Stabilizer Bar Diameter - Front (in)
N/A
Tires
Rear Tire Order Code
N/A
Spare Tire Order Code
N/A
Wheels
Rear Wheel Size (in)
20 X 8.5
Spare Wheel Size (in)
N/A
Steering
Steering Ratio (:1), Overall
N/A
Lock to Lock Turns (Steering)
N/A
Brakes
Brake ABS System
4-Wheel
Brake ABS System (Second Line)
N/A
Fuel Tank
Aux Fuel Tank Capacity, Approx (gal)
N/A
Interior Dimensions
Front Leg Room (in)
41.4
Front Shoulder Room (in)
59.5
Exterior Dimensions
Length, Overall (in)
190.2
Width, Max w/o mirrors (in)
74.8
Cargo Area Dimensions
Cargo Area Length @ Floor to Seat 2 (in)
N/A
Cargo Area Length @ Floor to Seat 3 (in)
N/A
Cargo Area Dimensions
Cargo Volume to Seat 2 (ft³)
40.5
Cargo Volume to Seat 3 (ft³)
14.6
Traction Battery
Gross Traction Battery Capacity (kWh)
1.5
Weight Information
Total Option Weight (lbs)
0.00
